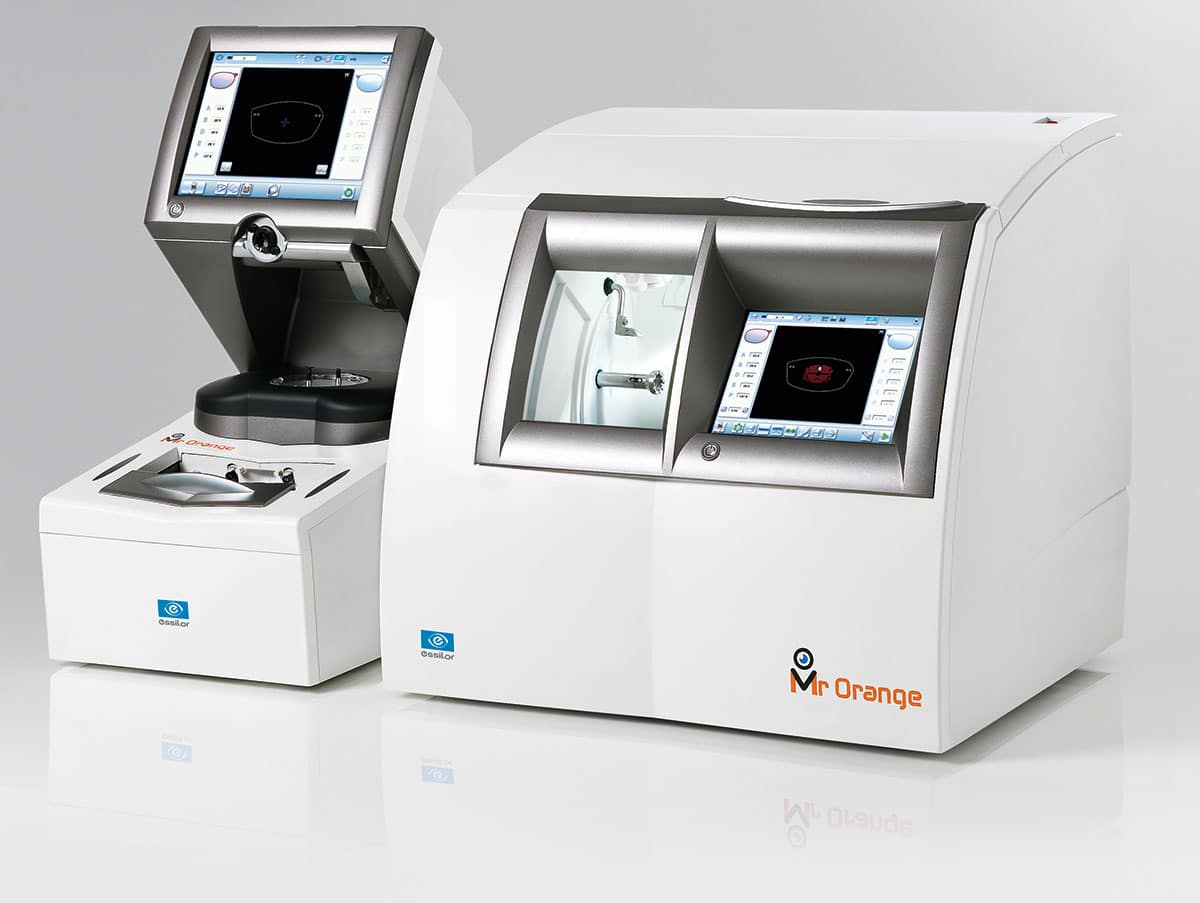

Mr Orange Edging System

A perfectly balanced concentrate of technology

Thanks to its perfect balance of speed and performance, the Mr Orange lens edging system sets a simple and accessible standard for even the most difficult jobs. Whatever the finish or curvature of the lens, its wide array of functions guarantees top quality results.

Manufactured by Essilor | CE- and UL-certified

Mr Orange
Mr Orange

Request PricingAdd to cart

Total Command of Your Jobs

  • 30o tool inclination: Combined with lens geometry analysis, this range of movement provides outstanding results for all lens finishes (grooving, drilling, beveling) and base curves.
  • Fit-4-Frame technology: Variable geometry bevel with a dedicated chamfering wheel for shelf-beveling and fitting lenses in every form of groove regardless of the frame base

Designed to Change with Lenses

  • Star control process: Especially for hydrophobic treated lenses, this cycle offers outstanding control of the lens integrity (centering, edging, treatment resistance), irrespective of the material, shape, and finish.
  • Real-time control of cutting forces offers the best execution time and performance ratio.
  • Customized finishes: Customization of the finish parameters offers irreproachable results and guarantees a perfect fit under all circumstances.

High Level of Tracing

  • Binocular tracing in 3 dimensions up to base 9
  • Feeler profile and inclination* designed to follow even the most complex grooves
  • Mechanical design recognized for its precision and regularity

*Essilor patent

Efficiency Based on Comfort

  • Centering space designed for all lens geometries, including curved large diameters and recut lenses
  • Hand rest and front-loading blocking arm designed for ambidextrous use
  • Soft touch finish of the centering range for work comfort and more accuracy

Precise Centering Strategy

  • Centering aid: Real-time orientation and validation of the best centering position
  • Centering free from all prismatic effects, irrespective of the lens power
  • Automatic adjustment of decentrations depending on the frame parameters (curve angle, base and pantoscopic tilt) and the wearer data

Traces between the Lines and Stores Data Twice as Fast

  • Simultaneous acquisition of the shape and drilling data
  • Direct tracing without handling the lens or any accessories
  • Simple, easy access to the shape and drilling libraries
thumbnail of Mr. Orange Brochure

Mr. Orange Brochure

thumbnail of Finishing Systems Overview brochure 01-2021 email

Finishing Systems Overview

thumbnail of Finishing Catalog USA 01-2022 email

Finishing Equipment Catalog

thumbnail of Mr. Orange (M22) User Manual (US)

User Manual – Mr Orange Edging System

thumbnail of Mr. Orange Tracer (L13) User Manual Addendum (US)

User Manual – Mr Orange Tracer Addendum
