Lens Finishing Systems

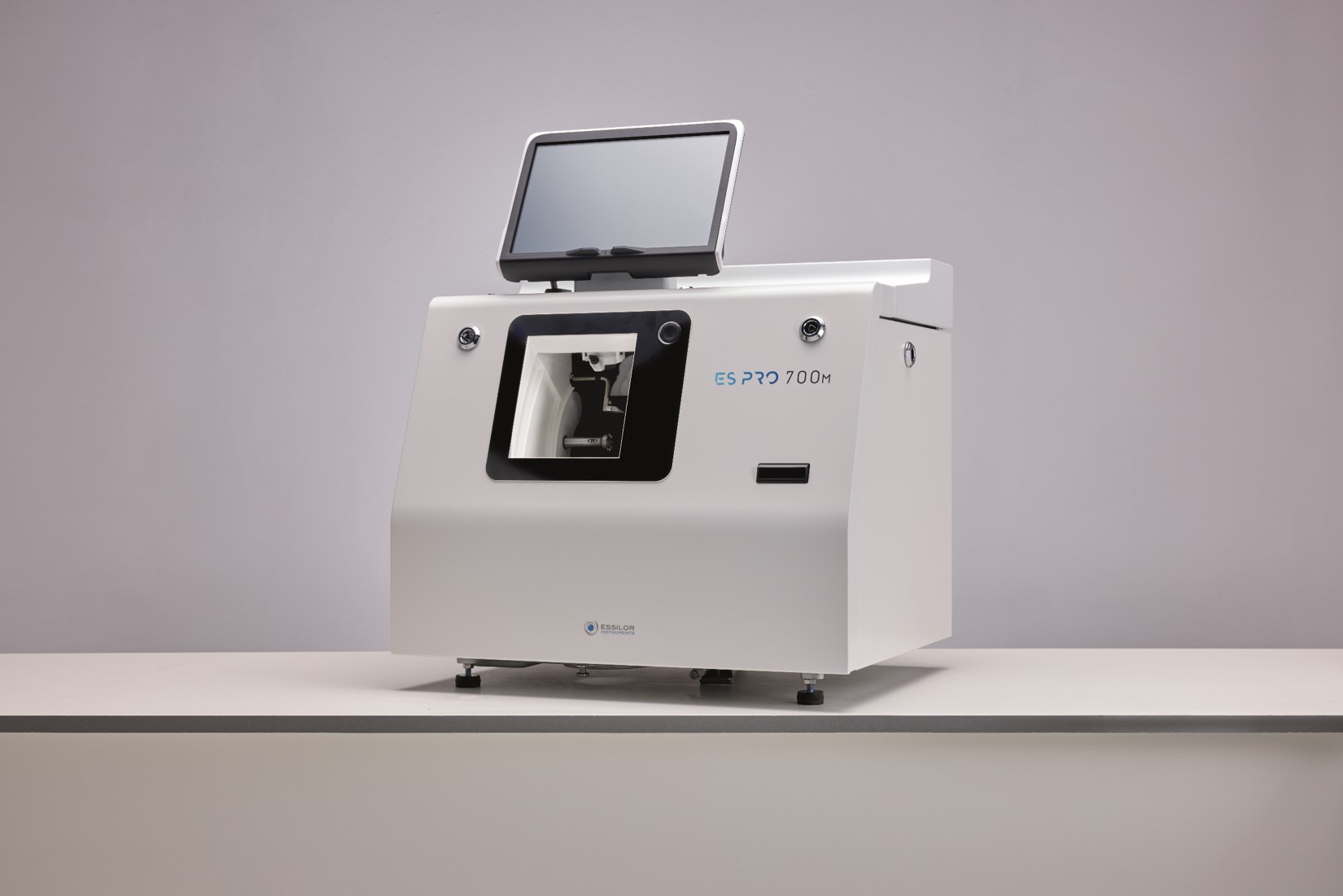

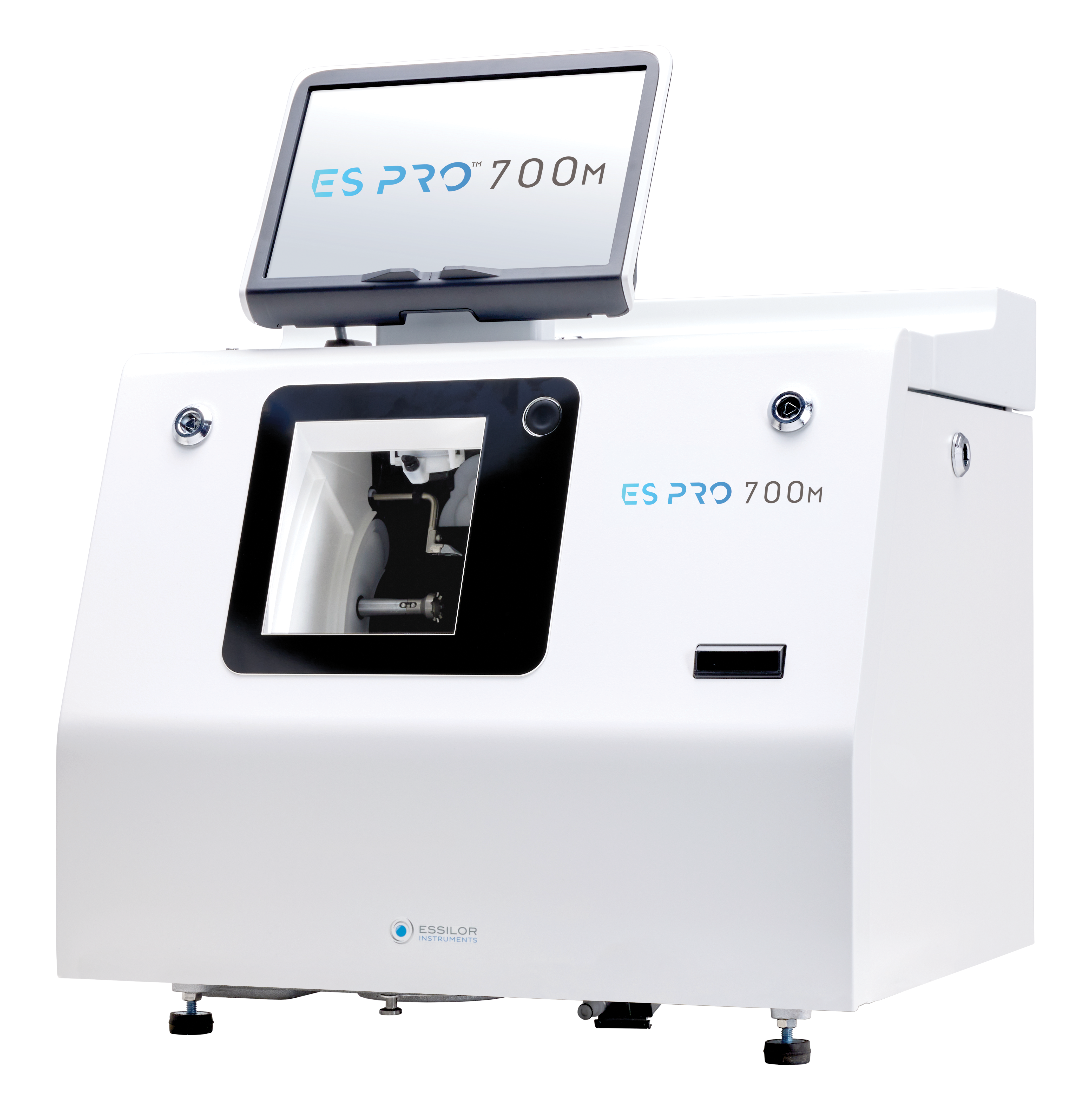

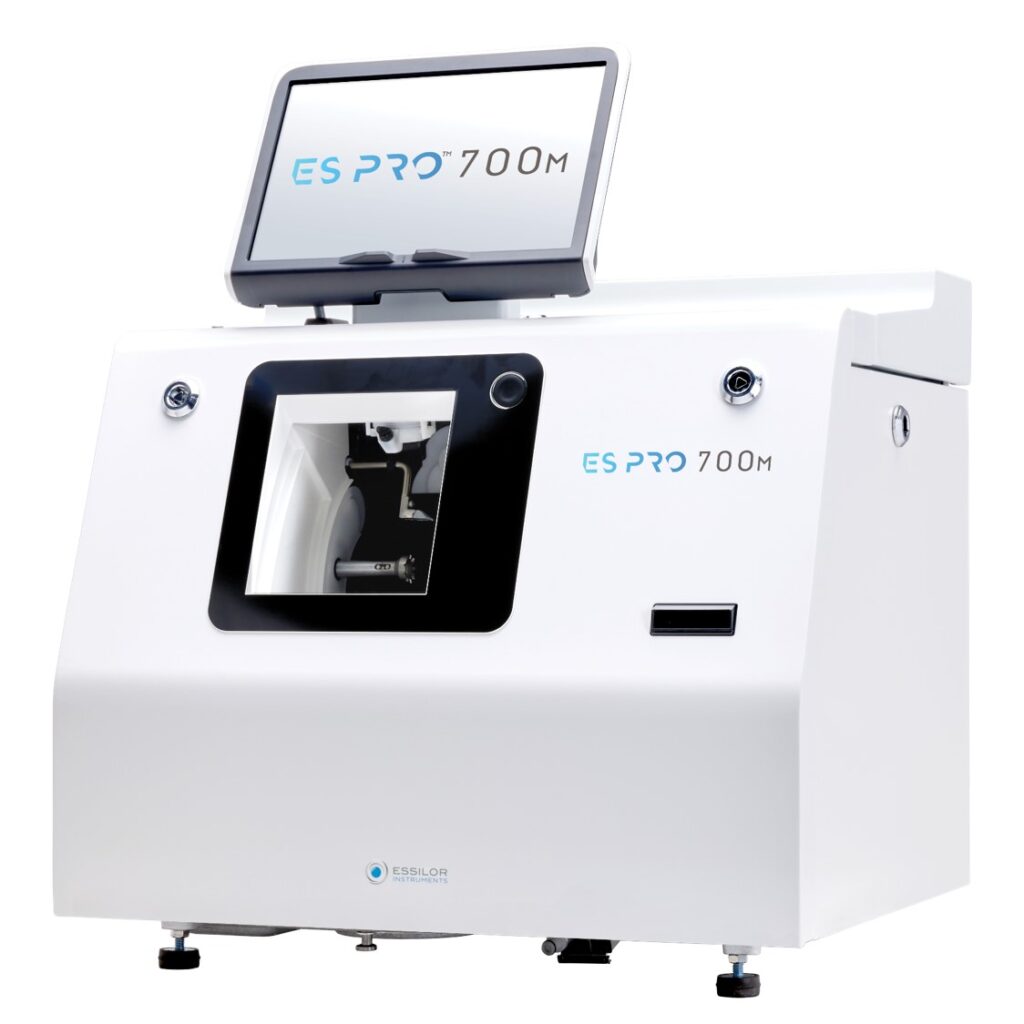

ES PRO™ 700M Edger for High-Volume Labs

Elevate your edging standards

ES PRO 700M is a robust in-lab finishing solution to boost your productivity and expand your lab’s capabilities. It combines accuracy utility, easy integration, and reliability to minimize downtime and expand your capabilities.

  1. Drive your Productivity
    • Edging time reduced by up to 41%
    • Milling time reduced by up to 57%
  2. Integrate with Ease
    • Enjoy quick installation and ergonomic experience
    • Smooth synchronization. Easy calibration
    • Maintain with ease for maximum uptime
  3. Craft with Precision
    • Aesthetic and robust mountings
    • Edging precision built on state-of-the-art innovations
    • Avoid axis-deviation risks and prioritize safe mounting
    • Offers a responsible edging approach through its milling function

Manufactured by Essilor | CE- and UL-certified

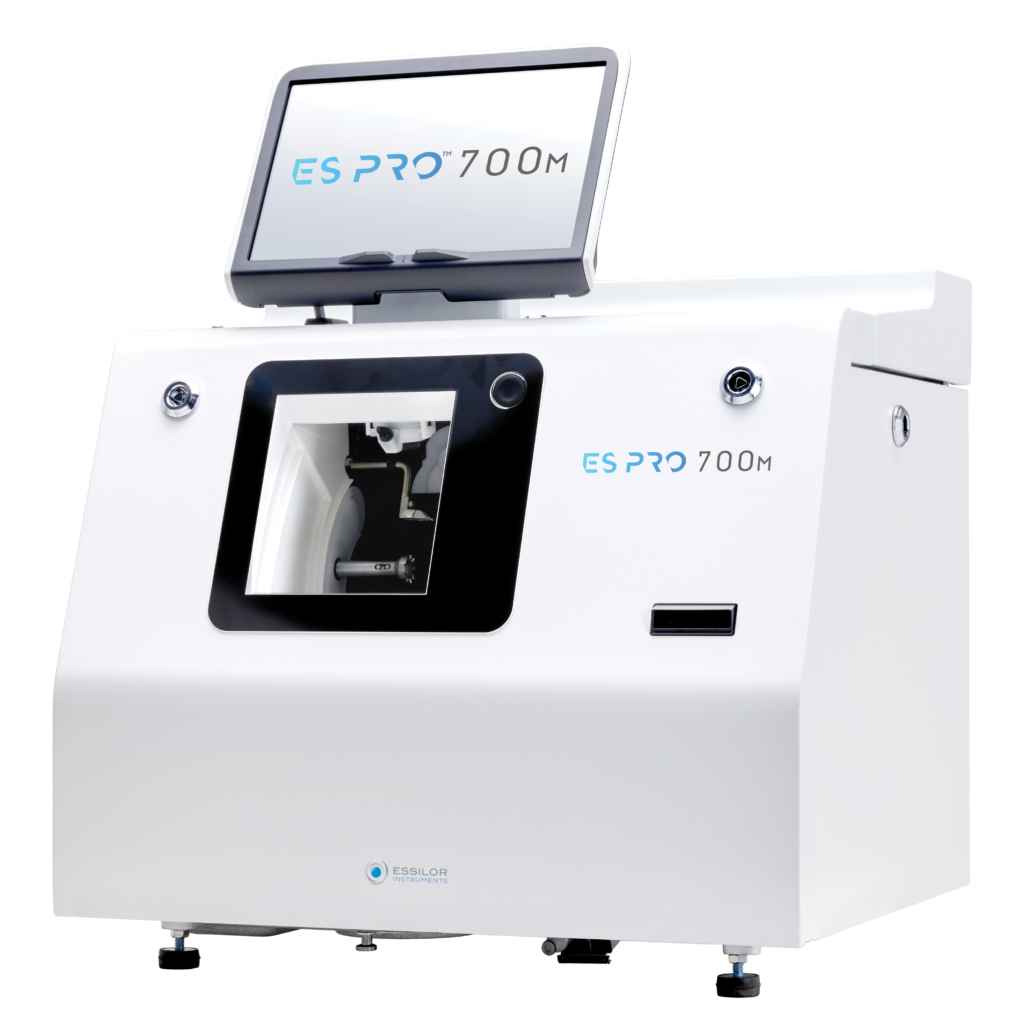

ES PRO 700M Edger (code - M4000001)

Request PricingAdd to cart

DRIVE YOUR PRODUCTIVITY

ES PRO™ 700M is a robust in-lab finishing solution to boost your productivity and expand your lab’s capabilities. It combines accuracy utility, easy integration, and reliability to minimize downtime and expand your capabilities.

Edging Time Reduced by up to 41%

  • Thanks to the SuperVeloce™ roughing cycle, the total process time to edge a lens has been reduced to up to less than 1 minute³ or 27 jobs per hour.
  • A new set of wheels provides better grinding power and allows for faster and more efficient edging.

The ES PRO 700M improvement is on average 25% faster vs. PRO-E™ 600/700.

Milling Time Reduced by up to 57%

  • The ES PRO 700M milling tool’s lifespan is multiplied by six, regardless of the lens material.
  • The combination of a robust and sturdy machine design along with specific shapes and dimensions of the cutting tool enables faster and more efficient milling, drilling and grooving.

INTEGRATE WITH EASE

Enjoy quick installation and ergonomic experience

ES PRO 700M fits into any lab with ease. This robust and compact tabletop edger requires no vacuum or compressed air, which means no extra investment.

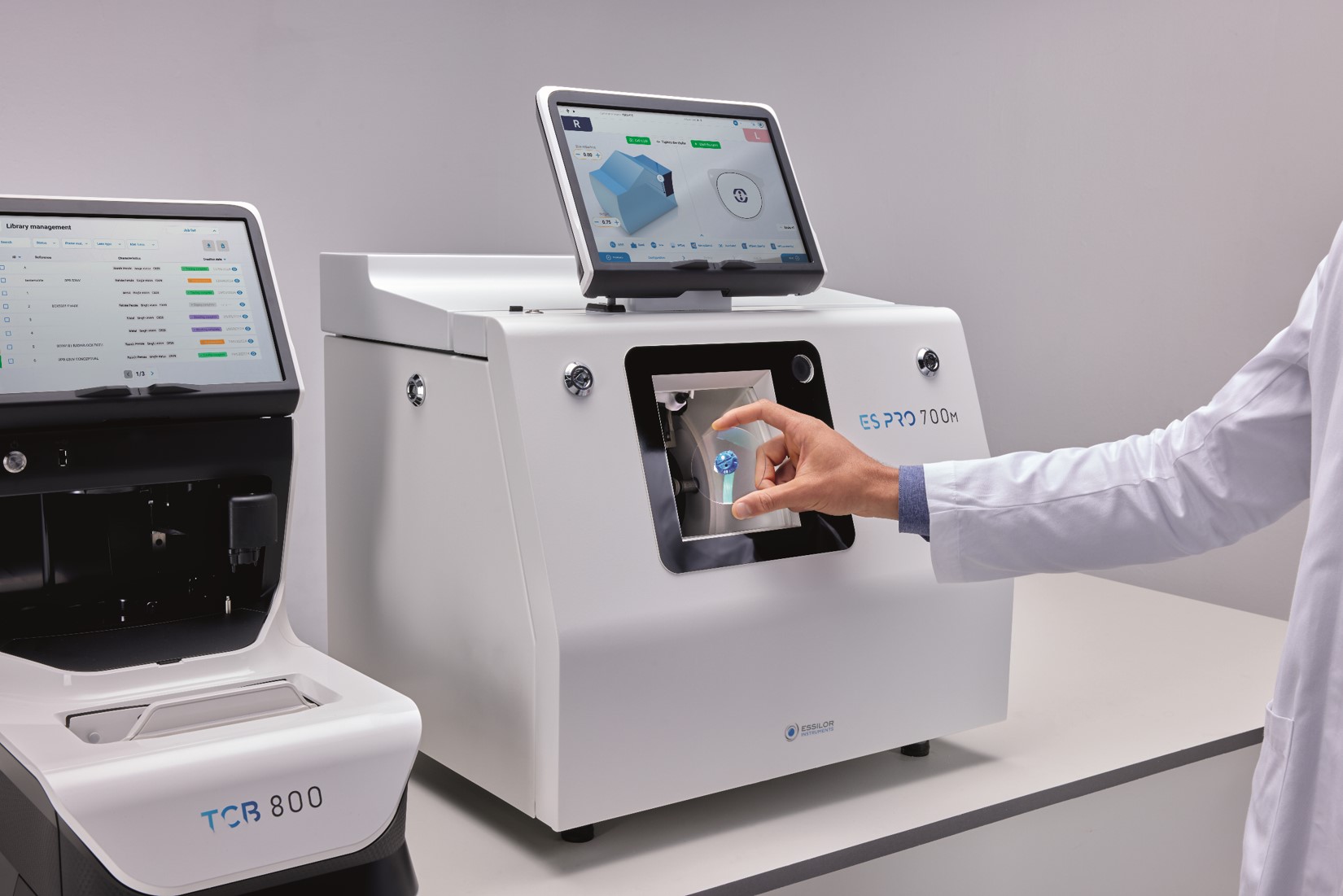

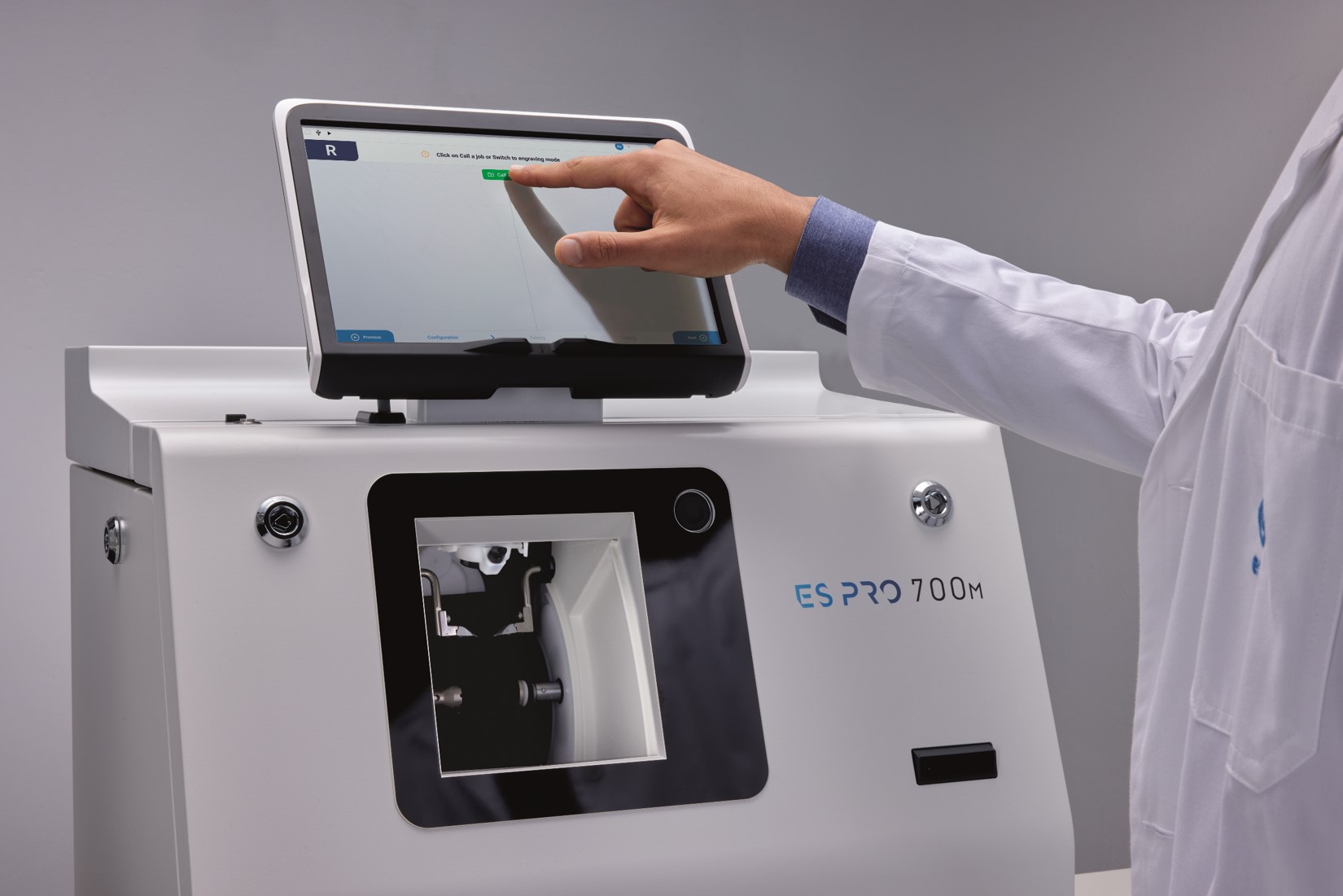

The tiltable 12-inch multi-touch screen offers a comfortable heads-up navigation experience with 3D views that showcase every detail.

Smooth synchronization. Easy calibration.

ES PRO 700M seamlessly interfaces with laboratory management software and can connect to other instruments.

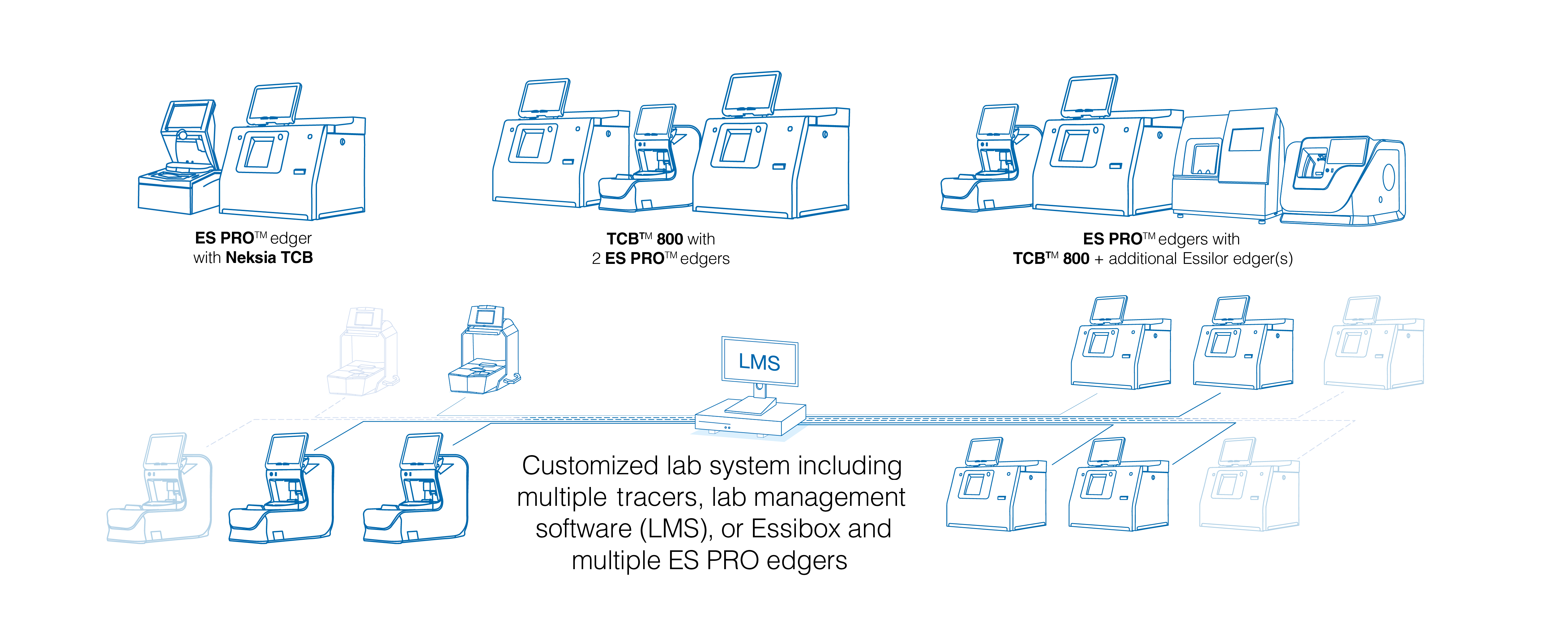

It is designed to fit customized systems including multiple edgers, tracer-centerer-blockers, lab management software as well as Essibox®, providing versatility and adaptability to various lab setups.

Maintain with ease for maximum uptime.

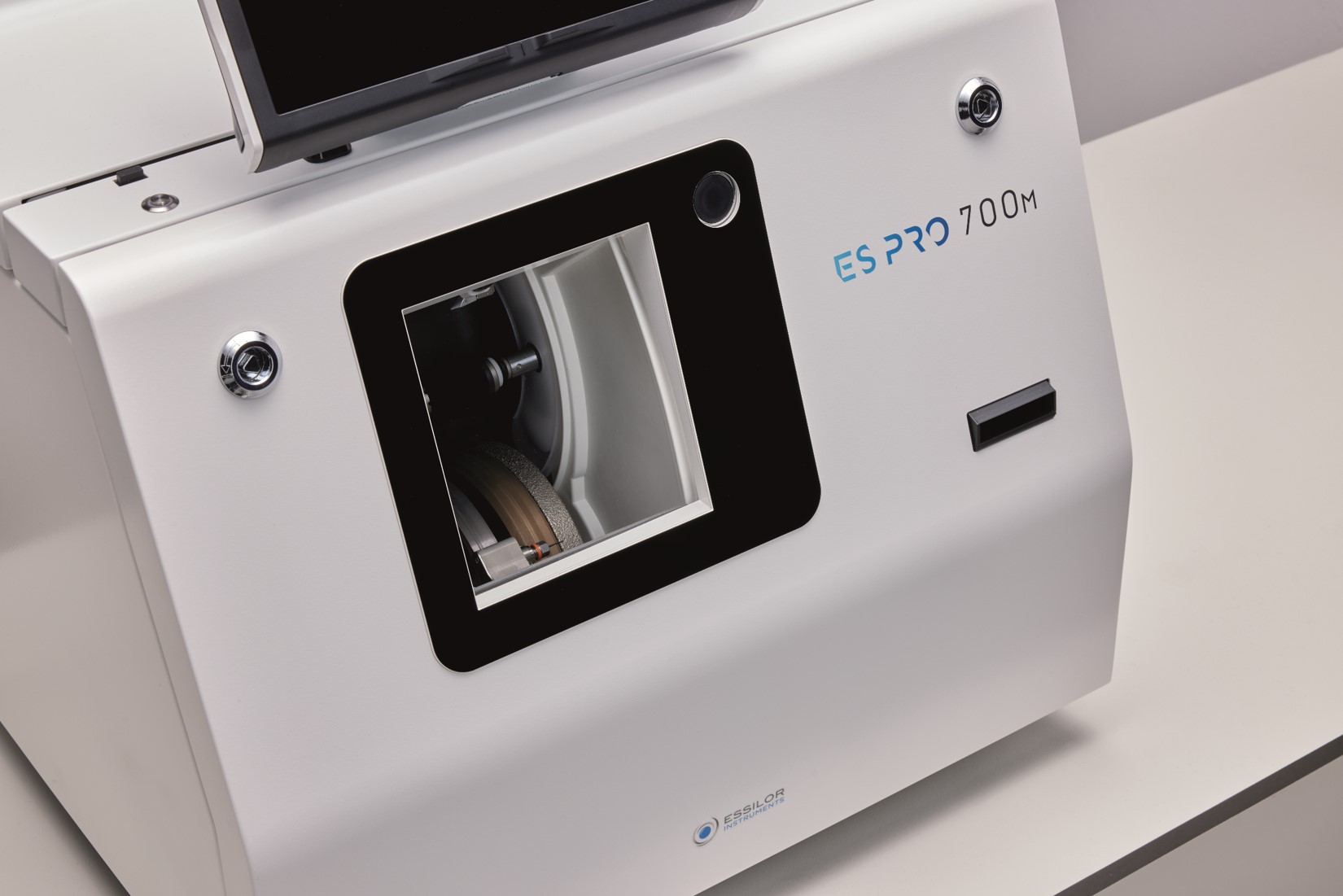

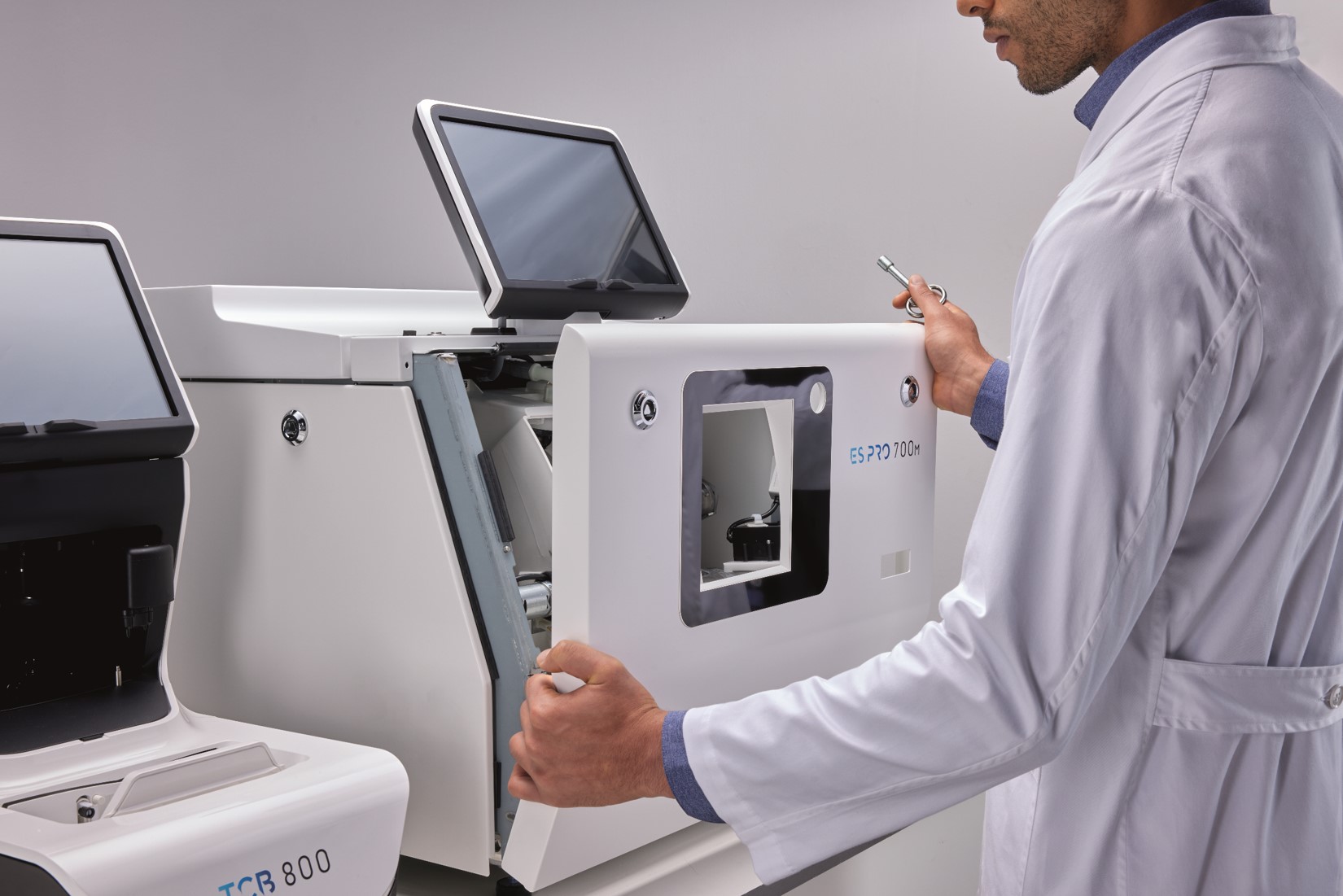

A side panel provides easy access to sub-assemblies and enables fast tabletop maintenance procedures.

Telemaintenance allows to update, diagnose, and tune-setting remotely. On-screen video assistance is available in the maintenance menu via a QR code to help simplify upkeep.

CRAFT WITH PRECISION

Aesthetic and robust mountings

Fit 4 Frame 2.0 technology enables the realization of a diverse array of bevels to accommodate various frame profiles, including both step and step back bevels. It ensures the ideal lens fit, without any compromise on aesthetics, for all mountings and finishes.

Edging precision built on state-of-the-art innovations

Real-Time Control of Cutting Forces – Take real-time control of the wheel’s cutting force through its SuperVeloce™ cycle function for optimized precision.

Full High-Curve Technology – Take advantage of a self-adjusting process that simplifies your mountings up to base 10.

Avoid axis-deviation risks and prioritize safe mounting with ES PRO 700M

Real-time control of cutting forces

  • The roughing cycle automatically adapts to the curves of lenses up to base 10, avoiding risks of breakage.
  • Bevel placement and shelf depth are optimized for safe mounting without undue stress on the lens.

Comprehensive axis control

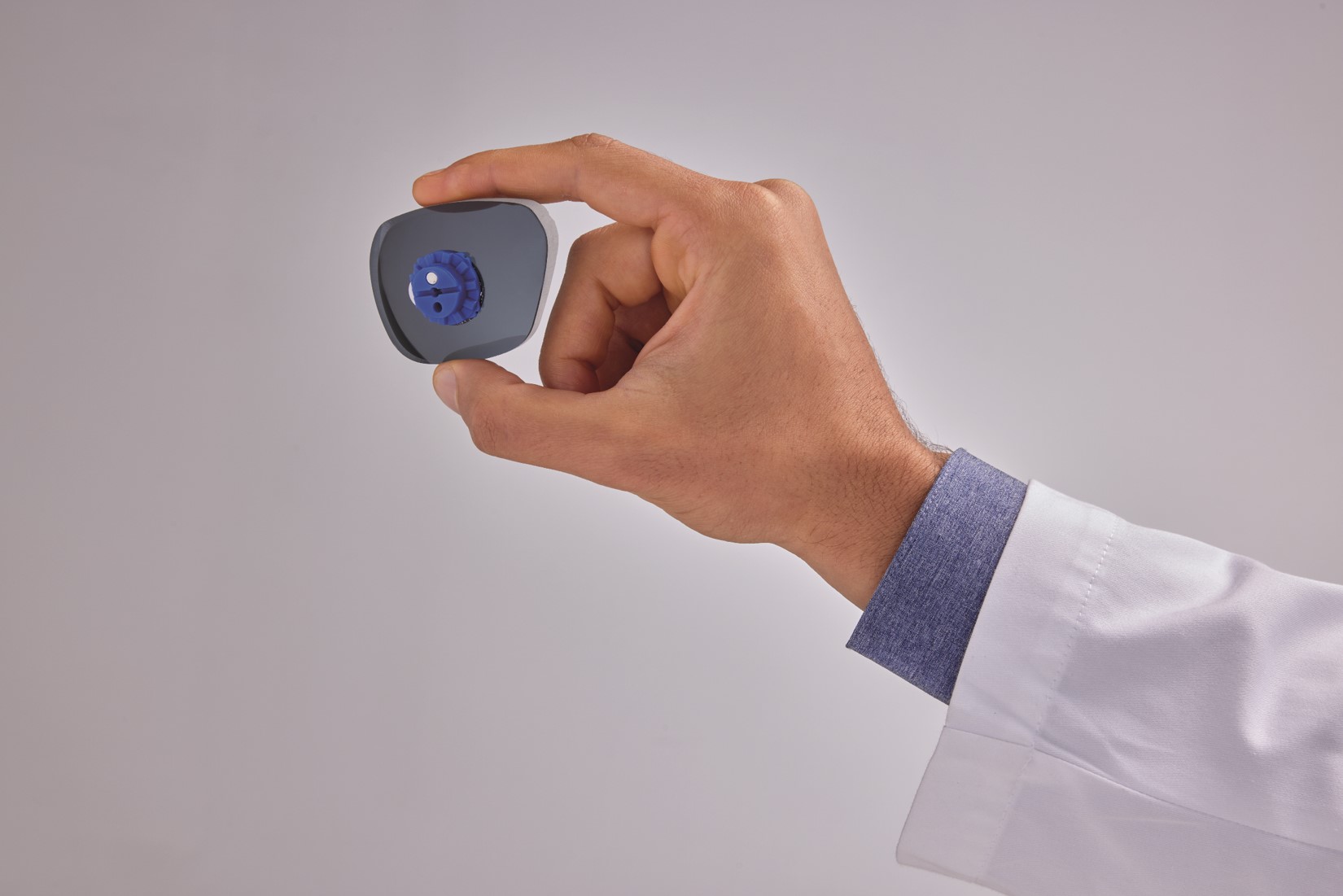

  • ES PRO 700M cuts all lenses1, including slippery hydrophobic lenses, with fine-tuned precision, thanks to its hybrid milling and grinding technology.

ES PRO 700M offers a responsible edging approach through its milling function.

  • Dry-cut technology reduces water consumption, lens waste, and unwanted odors generated during the milling process.
  • This produces fewer dust particles that would otherwise end up in the recycling tank or drain depending on the installation of the workshop; thereby reducing lens swarf.

Water consumption can be reduced by as much as 66%.

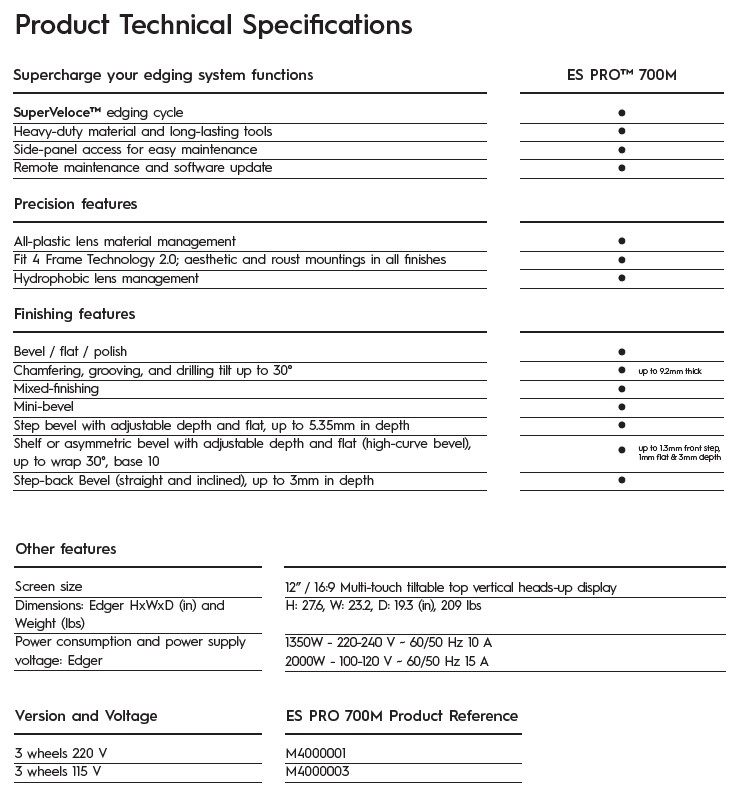

Click on the image to enlarge:

ES PRO 700M Brochure

Finishing Systems Overview

Finishing Systems Catalog

Please Contact Us for the user manual for ES PRO 700M.
