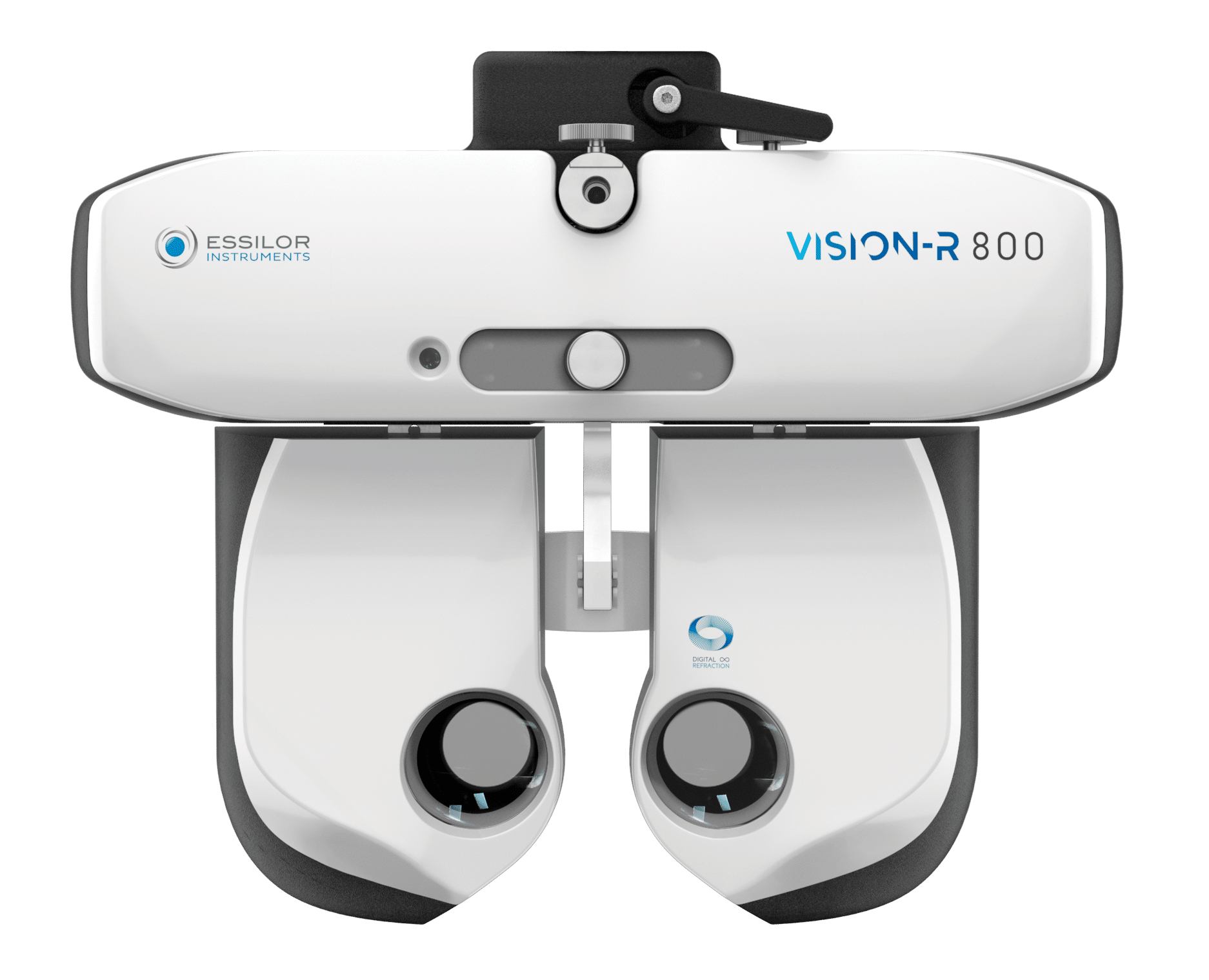

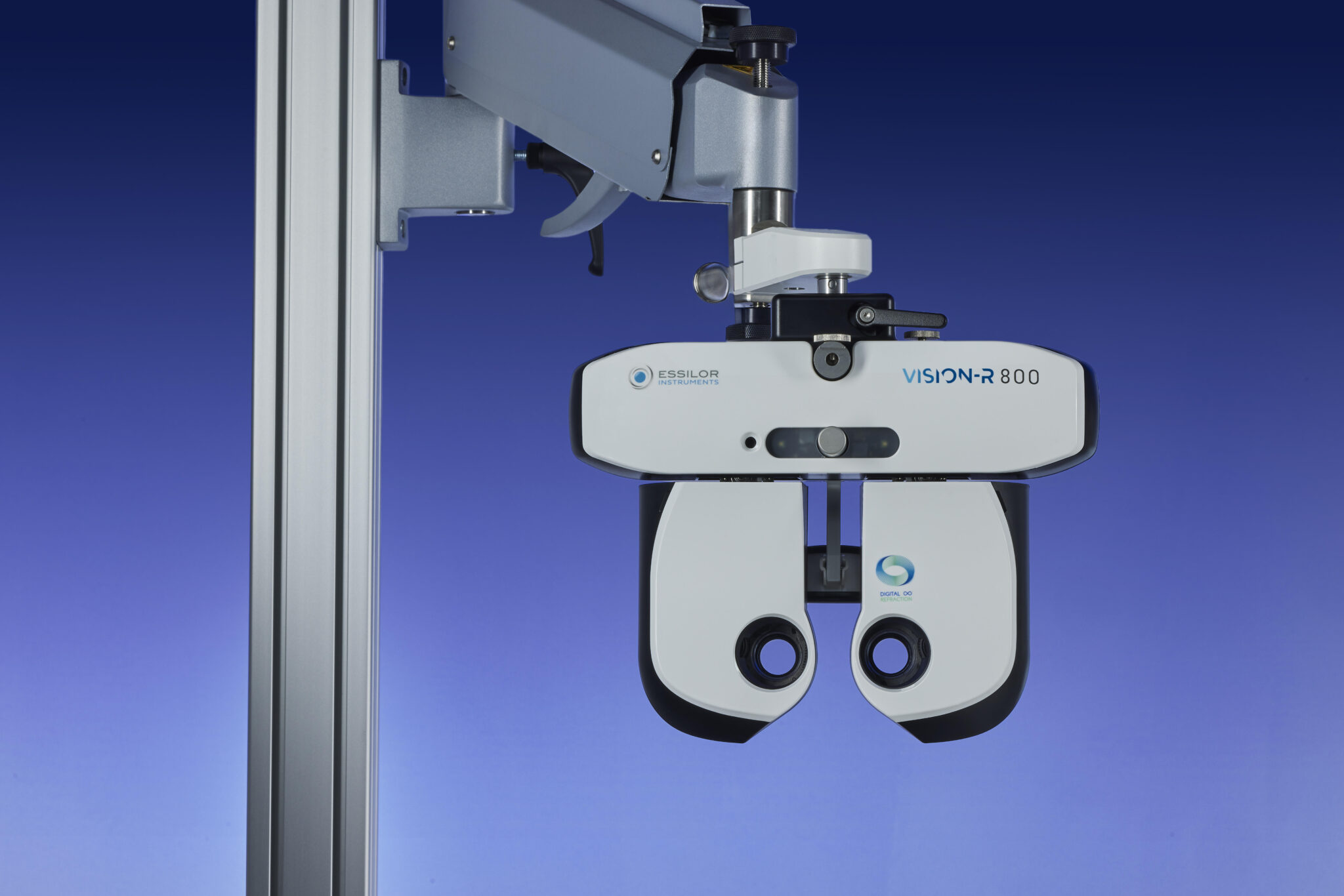

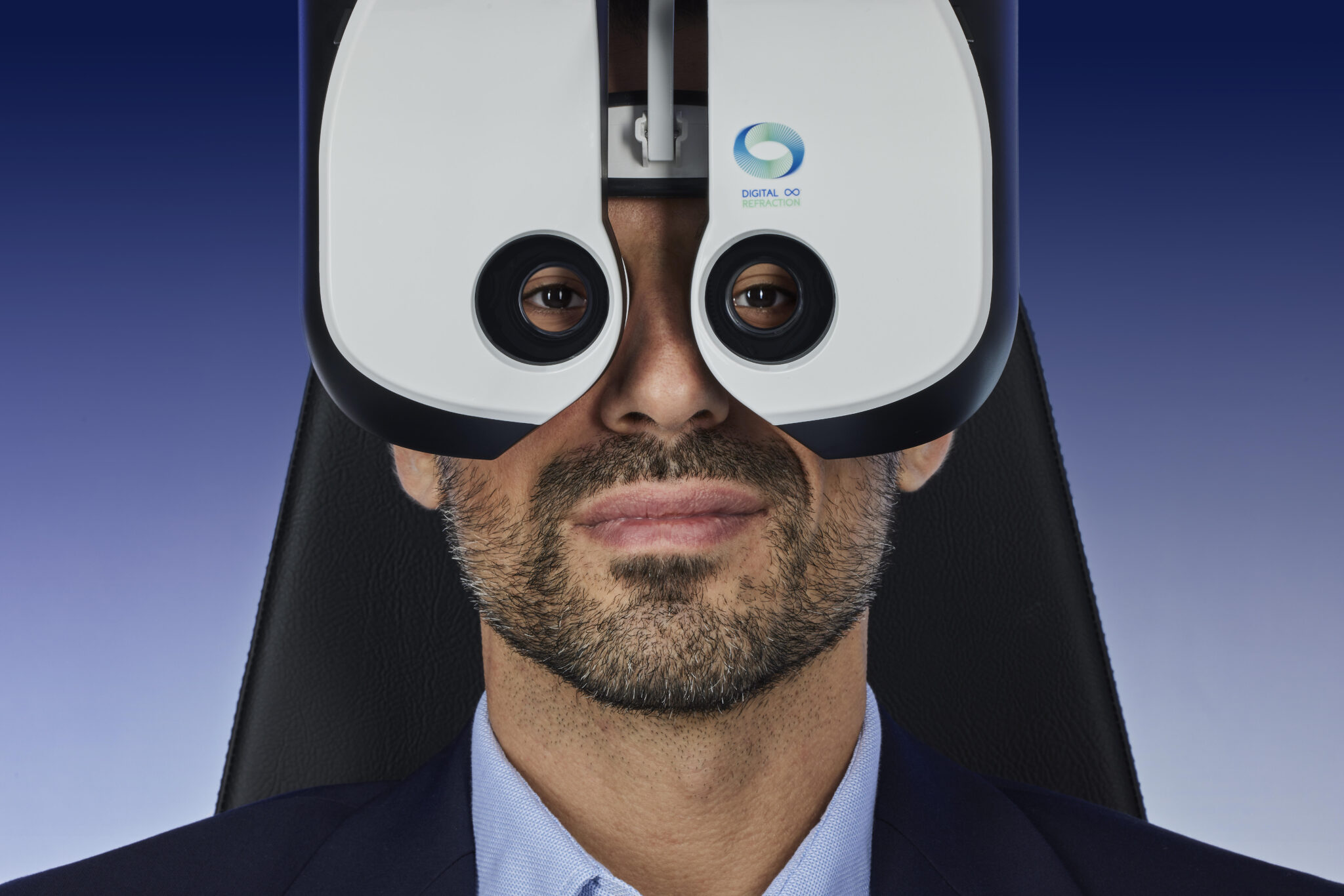

Vision-R 800 Refraction System
Entering a new era of refraction:
Give your patients the best of their vision
For many years, subjective refraction techniques have hardly changed. Today, the Vision-R 800 auto phoropter offers continuous power changes and makes refraction more precise, easier to perform for the practitioner and more comfortable for the patient.
- Patented optical module allowing for instant focus and exact refraction, delivered by measurements up to 0.01D
- Refraction performed with the “Smart Tests” unique algorithms to optimize the exam
- Comfortable experience for the patient due to smooth, continuous power changes
- Results presented in simulated real-life conditions to enhance patient confidence
Note: Submitting a support ticket will take you to a separate website.
Flexible Setup

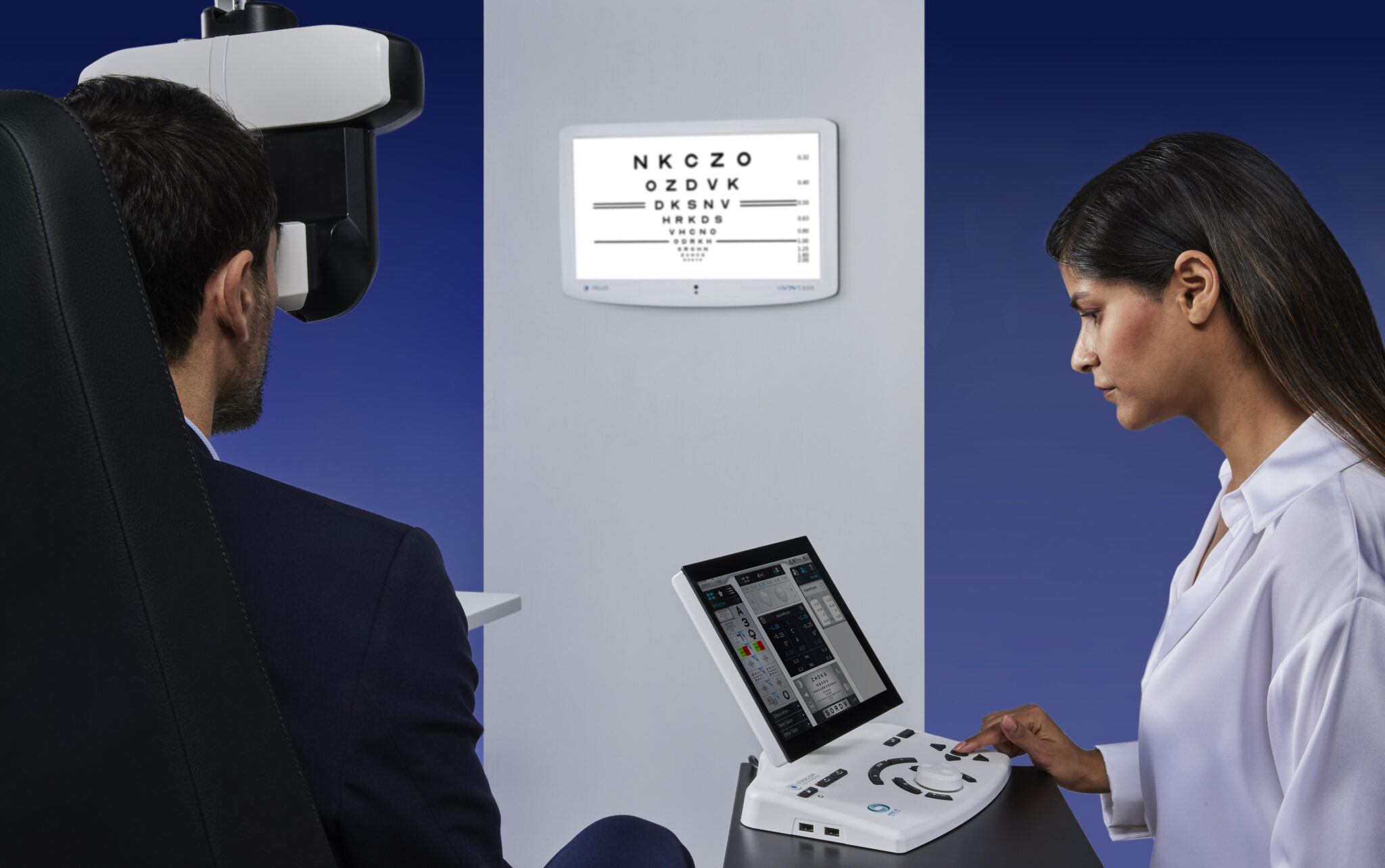

Eye care professionals can operate the phoropter up to 23 ft. away, with a cable length of 23 ft.
Removable Protection
Ability to change and clean patient contact points
Headrest and face shield are easy to remove and replace.
Limited Interaction
Vertex distance – Unique mechanism to control the vertex distance with cameras
PD alignment – Import and set PD from AKR and adjust
Evaluate from a Distance
Phoropter level – Lights indicate whether the phoropter is leveled.
Export and conversion of data – Get all the needed data with customizable export options.
Vision-R 800 makes refraction too easy; it takes the art out of it. Doesn’t this lessen the value of an OD?
It does not lessen the value of the OD. It does; however, create an environment where efficiency and repeatability are much easier to accomplish. It also aids in uniformity with multiple doctors.
Does it still use the standard Jackson Cross Cylinder for checking cylinder and axis?
Yes; however, it adjusts sphere, cylinder, and axis simultaneously, and it takes every answer into consideration, including “the same” or “I don’t know.”

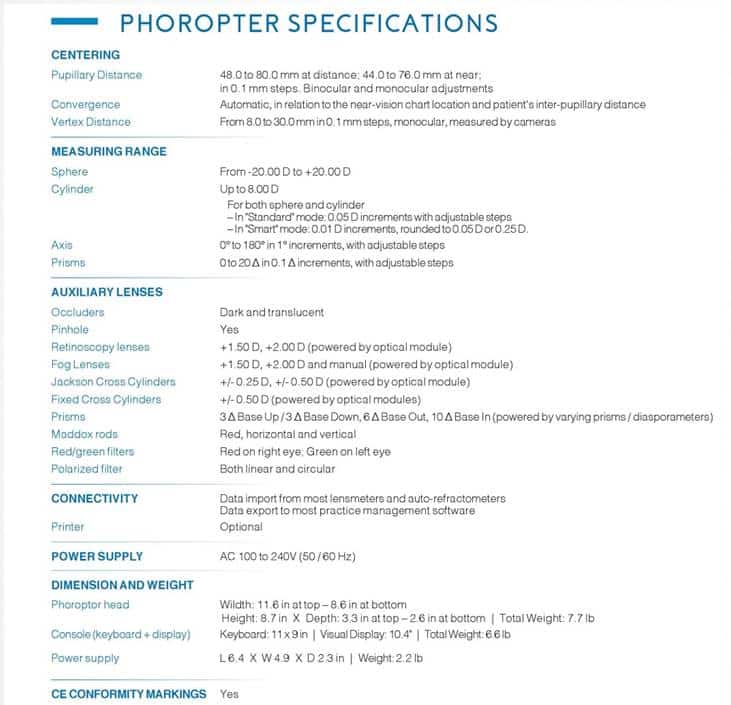

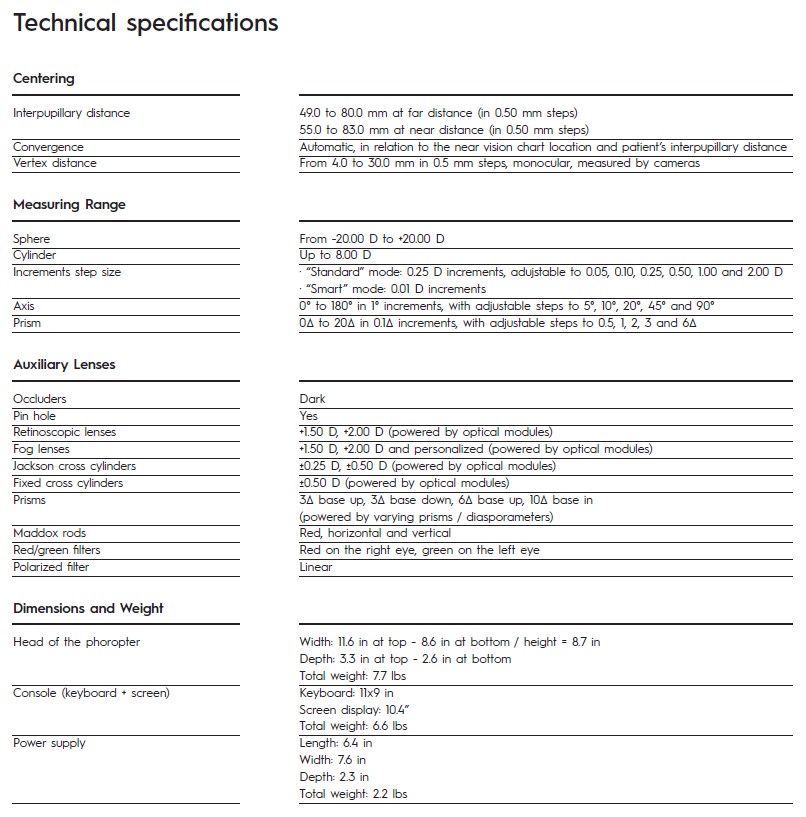

What is the sphere and cylinder power range?
Sphere power of +/- 20 diopters and cylinder power to 8 diopters
Can you test in the same manner as a manual phoropter?
Yes, there is a full Manual mode.
Are there programmable tests?
Yes, there is the pre-programmed Smart Test and three slots are available for custom programming.
-
Phoropters – Vision-R 700/800 Phoropter Protection Shield
Code: V01910
Vision-R 700/800 Protection Shield
Easy to install and remove for regular cleaning
Material – Plexiglass
Clean with disinfecting wipes.
For better fixation on VISION-R 800, use rubber seal R11.
